Description
Product Specification Table:
| Model | Description | Gear Ratio | Drag (kg) | Weight (g) | Retrieve Per Crank (cm) | Bearings |
| TRX500HG | TRANX 500HG | 6.6 | 11.5 | 568 | 108 | 7/1 |
The Shimano Tranx combines strength and comfort in a low-profile design that’s surprisingly lightweight, thanks to its forged and machined aluminium spool, plus an aluminium frame and side plate. Despite its compact feel, it boasts an impressive line capacity of 420m of 50lb PowerPro braid, and the Dartanium II drag system delivers up to 11kg of stopping power.
The 500HG model features a rapid 6.6:1 gear ratio, providing the speed needed for chasing hard-running species, while X-Ship’s double-bearing supported pinion gear and High Efficiency Gearing work together with the powerful handle to deliver serious cranking strength when it counts.

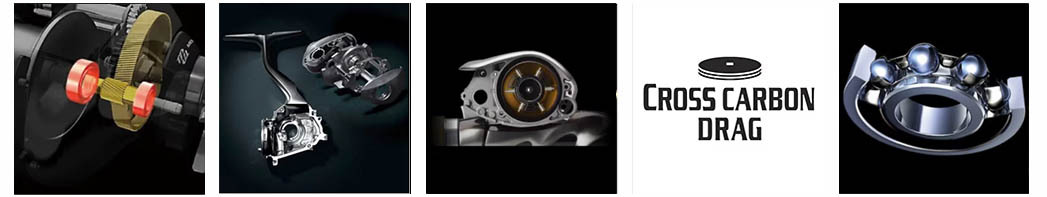

Technology & Features:
- X SHIP
X SHIP provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This increased support allows the gears to stay in the same position under the heaviest loads. X-Ship technology also eliminates the friction between the spool shaft and gear to further benefit anglers with enhanced casting performance and casting distance of lighter lures.
- HAGANE Body
The Hagane Body is a metal reel body with high rigidity and impact resistance virtually eliminate body flexing on the reel while fighting a fish. The result transforms the angler's actions directly into cranking power.
- SVS
SVS use centrifugal force, rather than magnets, to aid in controlling the cast. When turned on, the individual brake weights are forced outward at the beginning of the cast.
- CROSS CARBON DRAG
The CROSS CARBON DRAG provides the smooth drag release and the durability.
- S A-RB
S A-RB bearings are put through the same process as Shimano's A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting the rotation of the bearing.
- SUPER FREE SPOOL
The Super Free Spool reduces friction on the spool shaft during the cast and enhances casting performance.
